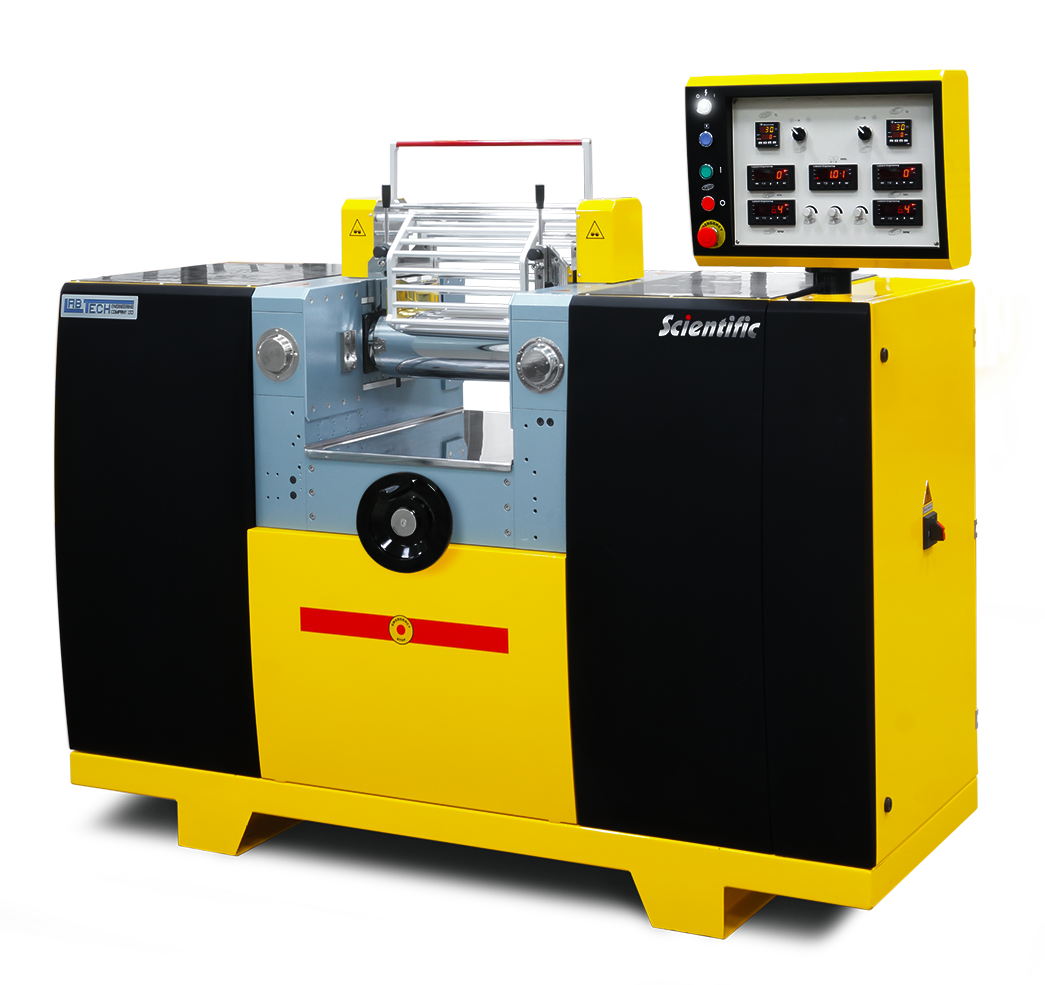

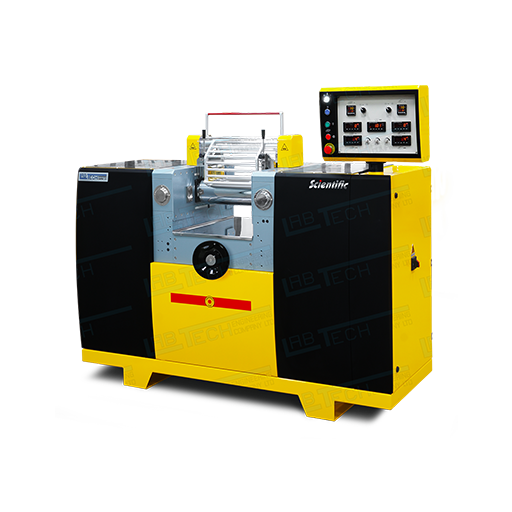

Polymer mills available with roll diameters of 100, 110, 150 and 200 mm. Roll heating is available in 3 ways, with our Standard 3-Zone or TRUE 3-Zone electric roll heating system, with Oil heating and cooling system, or with Electric roll heating and water cooling system.
Mills with electric or oil heated or water cooled rolls | LRM-S-110 | LRM-S-150 | LRM-S-200 |
|---|---|---|---|
Roll diameters (mm) | 110 | 150 | 200 |
Roll Widths (mm) | 280 | 400 | 450 |
Working widths (Others on request) (mm) | 220 | 320 | 370 |
Nip-Gap distance adjustment (Others on request) (mm) | 0.1 to 5.0 | 0.1 to 5.0 | 0.1 to 5.0 |
Individual variable speed Drive of each roll. | Front/Rear (rpm) | 0-50 | 0-40 | 0-30 |
Motor Power (kW) | 2 x 1.5 | 2 x 2.2 | 2 x 4.0 |
Mill Size ( Width x depth x height) (cm) | 150 x 70 x 170 | 160 x 80 x 175 | 180 x 90 x 185 |
