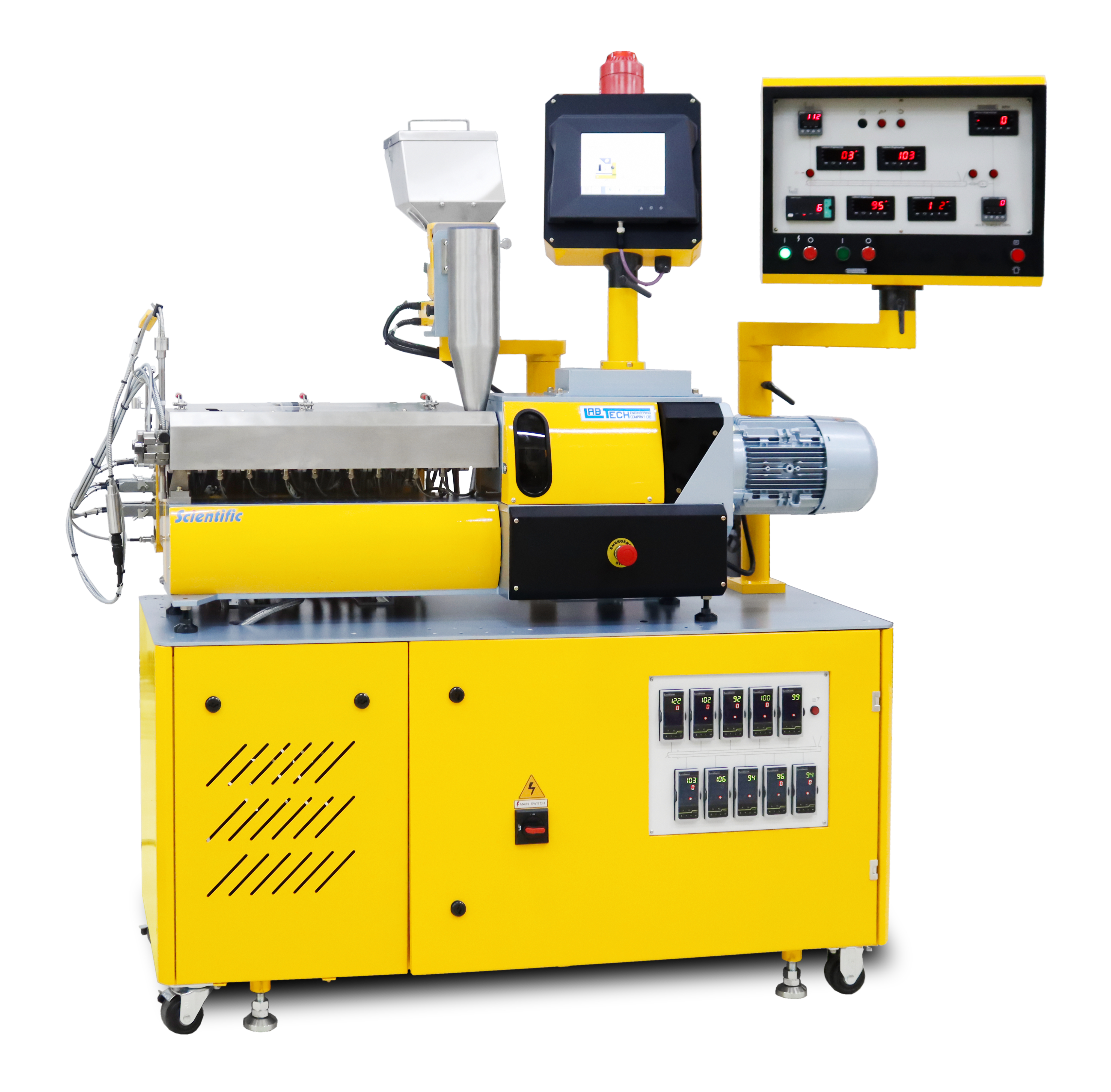

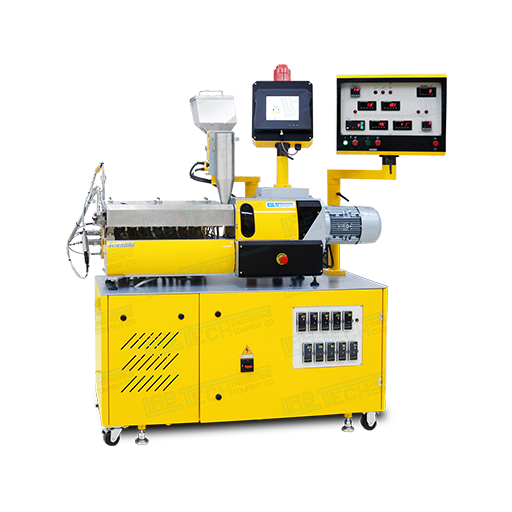

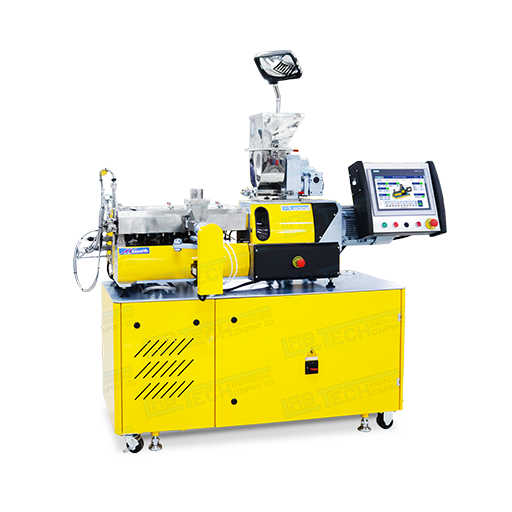

TWIN SCREW EXTRUDER 16 MM

Compounding Lines

TWIN SCREW EXTRUDER 16 MM

Available with gravimetric feeders which are modified to meet the requirement of feed rates adapted to the output of these small Twin Screw Extruders. Our 16mm Twin Screw Extruder is available with both water cooling and electric cartridge heating for all barrel zones as well as side feeders. Available in manual or fully computerized touchscreen controllers with possibility to download and process all data on a PC.

Twin Screw Extruders for Thermoplastics
Standard
Screw Speed (RPM)
0 to 800
Motor Power (kW)
2.2 kW
Maximum torque at 600 RPM
2 x 18 Nm
Specific Torque Nm/cm3
12
Max barrel temp.(Standard)
400°C
Total max power for 40 L/D
11 kW
Approx. max. output (LDPE)
5.5 kg/hr
