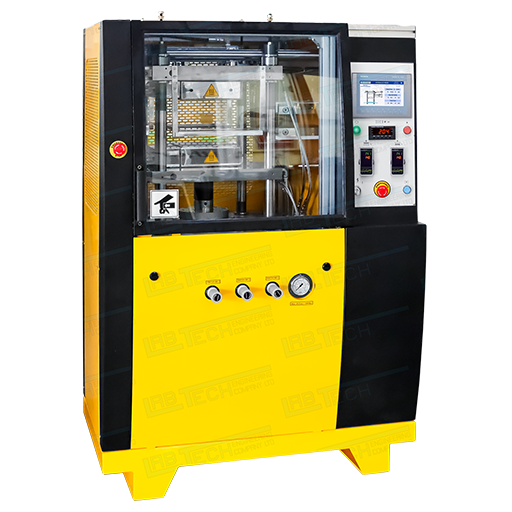

Modern designed steel cabinet with curved sliding front door. The front door is equipped with a large Plexiglas window and the control cabinet is recessed so that it is covered by the front door when opened. Laboratory presses from 20 to 80 MT platen closing force, with double set of heating and cooling platens as standard. Available with fully automatic platen insert cooling system, as well as many platen sizes and control options.
Hydraulic Press Standard | LP-S-20 | LP-S-30 | LP-S-50 |
|---|---|---|---|
Max Platen Pressure (MT) | 20 | 30
| 50
|
Press Platen Size (others on request) (mm) | 200 x 200 | 300 x 300
| 300 x 300
|
Daylight (max opening) (others on request) (mm) | 150 | 150 |
180 |
Platen Heating Power (kW) | 2 x 4 | 2 x 6
| 2 x 6
|
Hydraulic Motor Power (kW) | 2.2 | 2.2 | 4.0 |
Max Temperature (others on request) (°C) | 300 | 300 | 300 |
