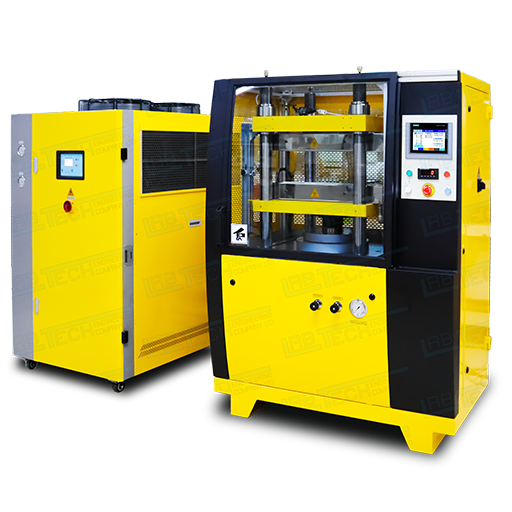

Modern designed steel cabinet with curved sliding front door. The front door is equipped with a large Plexiglas window and the control cabinet is recessed so that it is covered by the front door when opened. Laboratory presses from 20 to 80 MT platen closing force, with double set of heating and cooling platens being standard. Available with fully automatic platen insert cooling system, as well as many platen sizes and control options. Our ASTM Presses are supplied with optional high precision chilled water cooling system.
Hydraulic Press ASTM | LP-S-50/S.ASTM | LP-S-50/ COMP.ASTM | LP-S-80/ COM.ASTM |
|---|---|---|---|
Maximum Platen Pressure (MT) | 50 | 50 | 80 |
Platen Sizes (others on request ) (mm) | 300 x 300 | 300 x 300 | 400 x 400 |
Daylight (max opening)
(others on request) (mm) | 150 | 150 | 180 |
Platen Heating Power (kW) | 2 x 6 | 2 x 6 | 2 x 7.2 |
Hydraulic Motor Power (kW) | 4.0 | 4.0 | 4.0 |
Max Temperature (others on request) (°C) | 300 | 300 | 300 |
