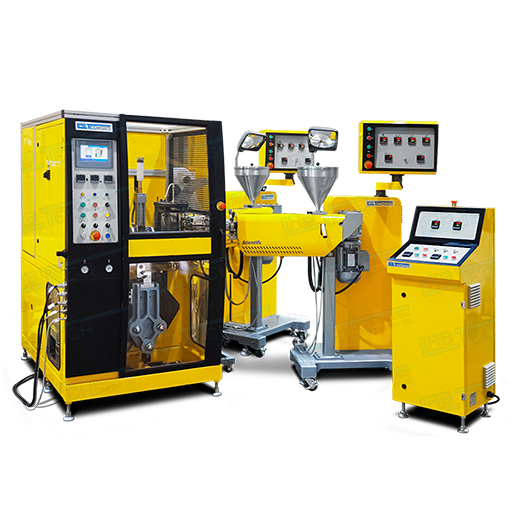

CO-EXTRUSION BOTTLE BLOW MOULDING LINE

Fully automatic hydraulic bottle blow moulding attachment can be attached to our 20 and 25 mm single screw extruders. The lines used a streamlined die for optimum color dispersion. A minimum amount of purging is needed for color change over.

Our range of Blow Moulding lines produces single layer or multilayer bottles of up to 125 ml size and can produce bottle in practically all resin types that can be blown.

Our new larger bottle blow moulding attachment can produce bottles of up to 250 ml. The attachment is hydraulic with high clamping force. The co-ex 2 and 3 layer dies are made with adjustable parison thickness and they produce a very even layer thickness over the entire bottle.

Co-Extrusion Bottle Blow Moulding line
LBM-125
LBM-250
Max. Bottle size
125 ml
200-250 ml
Mould clamping strock
100 mm
150 mm
Mould clamping force
25 kN
14 kN
Machine dimension mm (WxLxH)
1300 x 1320 x 1700
1150 x 1640 x 1780
