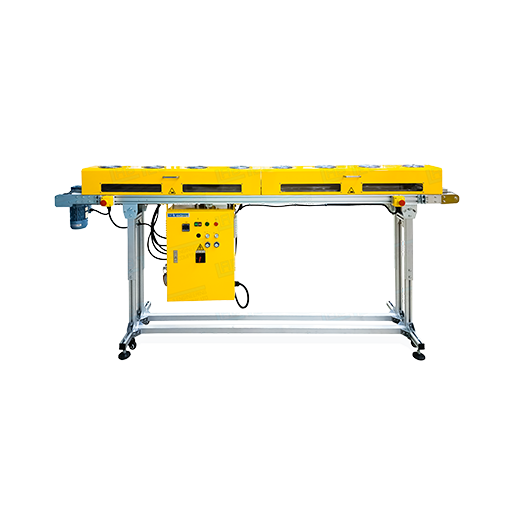

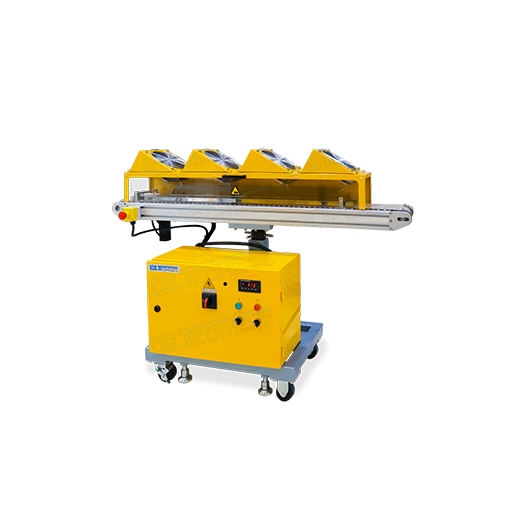

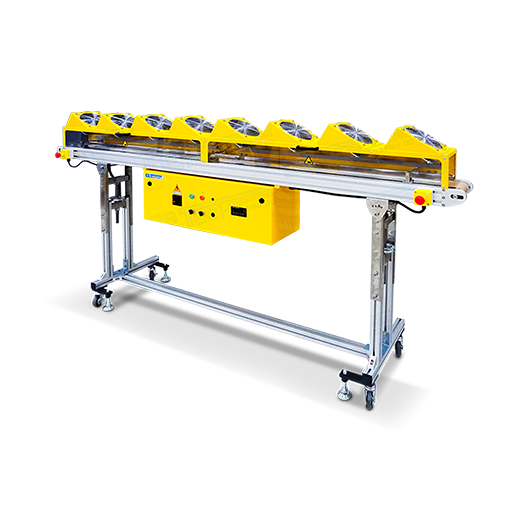

This air cooled conveyor is suitable for strand pelletizing of resins which are sensitive to moisture or where the strands have difficulties to hang together. The conveyor has a stainless steel mesh belt which allows air to pass through and it has a row of 8 large propeller fans (4 fans for LAC 1.2) which gives a large air flow to the strands with optimum cooling efficiency.

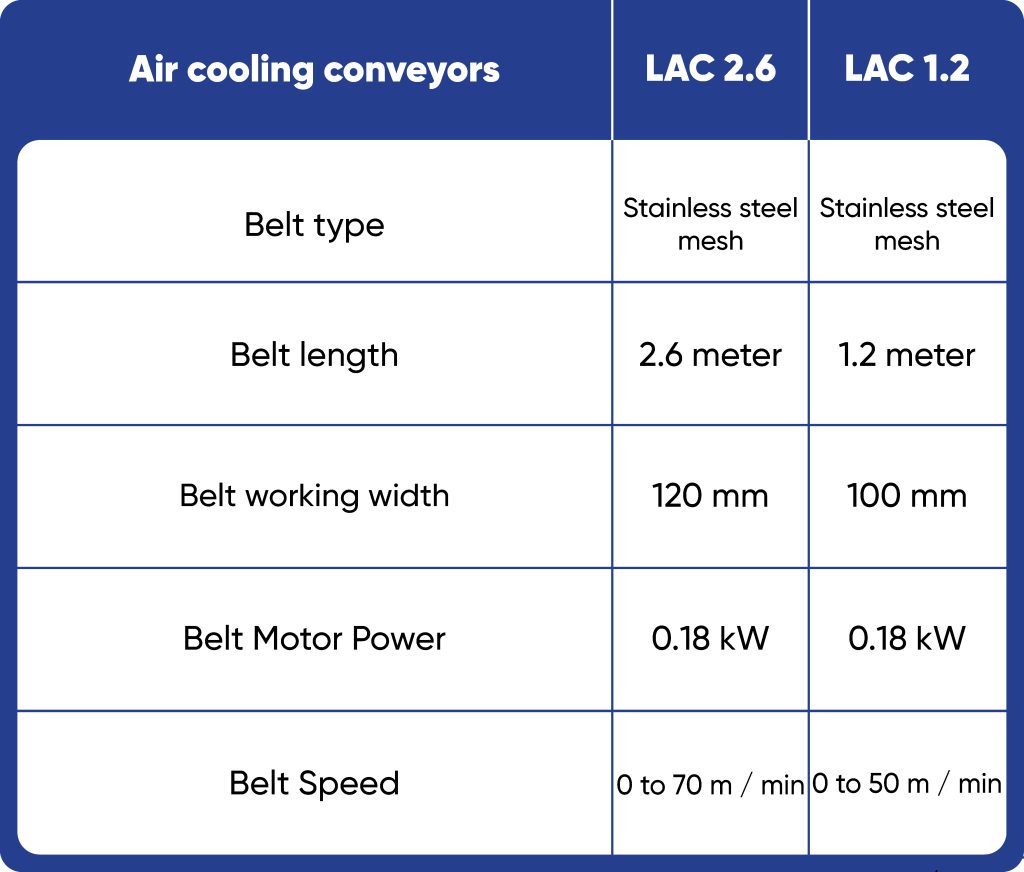

Air cooling conveyors | LAC 2.6 | LAC 1.2 |
|---|---|---|
Belt type | Stainless steel mesh | Stainless steel mesh |
Belt length | 2.6 meter | 1.2 meter |
Belt working width | 120 mm | 100 mm |
Belt Motor Power | 0.18 kW | 0.18 kW |
Belt Speed | 0 to 70 m / min | 0 to 50 m / min |
