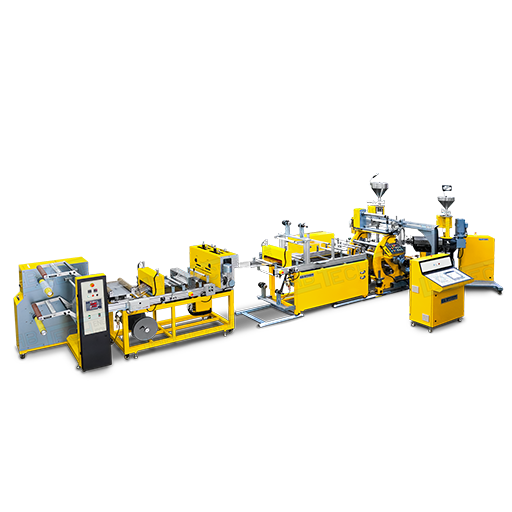

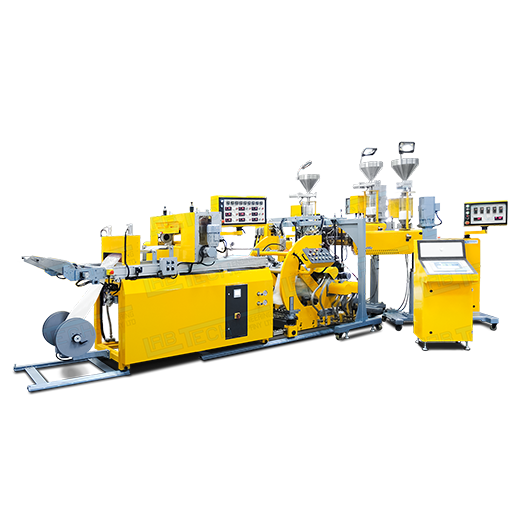

Labtech is proud to present the advanced development of our new heavy-duty C-shaped roller cast film attachment support, which has an upward configuration rolling stack design. This new and advanced feature produces the film and sheet at a very high speed and still gets sufficient cooling conduction from the rolls. … This unique C-shaped chill roll stack allows the optimum contact of the film or sheet against the center and upper rolls. The first and second rolls are horizontally aligned, and the third roll is mounted 45 degrees above the second roll. The web will be wrapped around 225° on the large center roll and 180° over the top cooling roll. This cast film type is designed to perform a faster cooling rate and facilitate efficient production.
Advanced C-Type Cast Film & Sheet Attachments
Max. film width
Max die width
Roll diameter, all 3 rolls
Roll surface finishing
Gear motor power
3 x 1.0 kW servo motor
Roll gap adjustment
Open and close by the hydraulic, gap is adjusted by precision blocks through ratchet handles
0.5 – 50 m/mm
