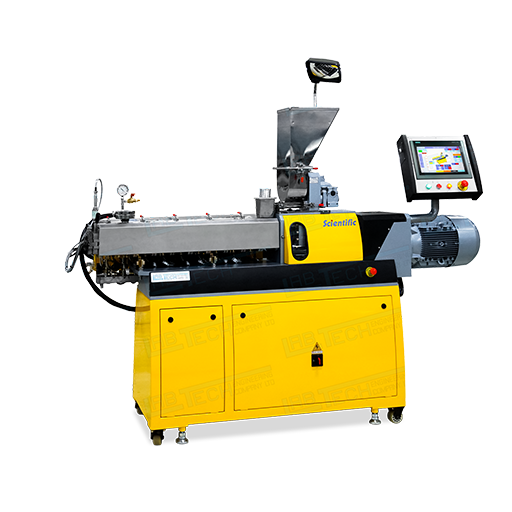

Modular Co-rotating Twin Screw Extruders are available with clamshell barrel inserts. With screw diameters of 12, 16, 20 and 26 mm for small batch productions. Single elements mounted on hexagonal shafts of screws for optimum flexibility of screw configurations. Available on both Single and Twin Screw Extruder are optional hopper feeders, vacuum pump with multiple vent outlets on the barrel, twin-screw side feeder, liquid feeders, quick screen changer and a multitude of screw element types and combinations. High Output 26 mm. Maxi Compounder with 22 kW drive motor and 1200 max screw RPM.
Twin Screw Extruders for Thermoplastics | Standard | Maxi26 Compounder |
|---|---|---|
Screw Speed (RPM) | 0 to 800 | 0 to 1200 |
Motor Power (kW) | 15 kW | 22 kW |
Maximum torque at 600 RPM | 2 x 90 Nm | 2 x 90 Nm |
Specific Torque Nm/cm3 | 9.8 | 9.8 |
Max barrel temp.(Standard) | 400°C | 400°C |
Total max power for 40 L/D | 35 kW | 42 kW |
Approx. max. output (LDPE) | 64 kg/hr | 80 kg/hr |
