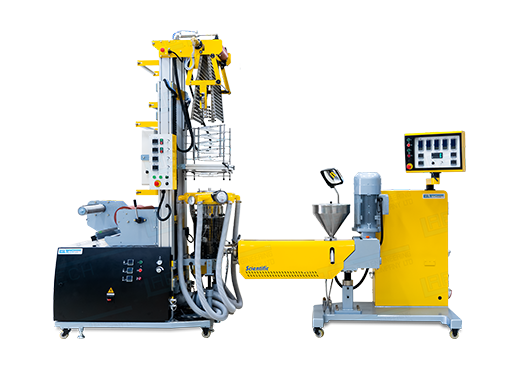

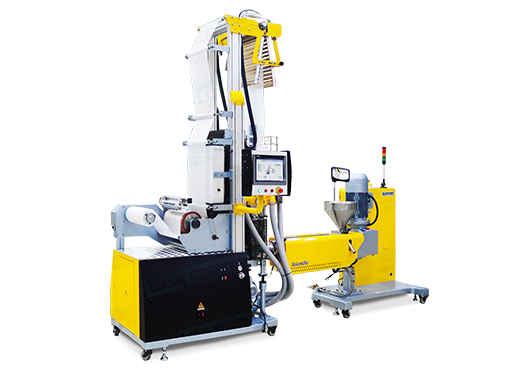

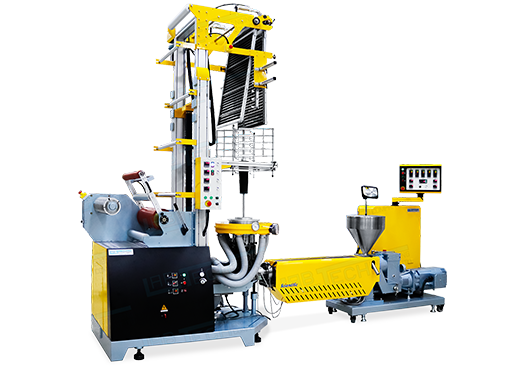

Single and Multi-layer film blowing lines for film lay-flat widths of up to 550 mm. with many features such as twin channel air cooling ring, variable speed haul-off and nip-rolls, etc.
The film blowing attachment is connected to our single screw extruder via a C-clamp on the flange of the extruder unit. The attachment is built up on an individual self-supporting frame with lockable casters and thus can be easily removed from the extruder.
The die is mounted on the two tower aluminum pillars, adjustable in height to align with the extruder flange.
The film blowing attachment is equipped with film bubble stabilizing cage and synchronous adjustable film collapsing frames with polished teak wood or carbon roller gate rods.
Single Layer Film Blowing Lines | LF-250 | LF-400 | LF-600 |
|---|---|---|---|
Maximum film lay flat width | 200 mm | 350 mm | 550 mm |
Film speeds, meter per minute | Haul Off Nip-Rolls 0 to 15 Wind-Up 0 to 15 | Haul Off Nip-Rolls 0 to 35 Wind-Up 0 to 40 | Haul Off Nip-Rolls 0 to 35 Wind-Up 0 to 40 |
Height from die to Nip-Roll | 925-1,184 mm (other on request) | 950-1,210 mm (other on request) | 2,000-3,000 mm (other on request) |
Total height of film tower | 2,050-2,310 mm (other on request) | 2,400-2,660 mm (other on request) | 3,200-4,200 mm (other on request) |
Total electrical power | 4.9 kW | 5.0 kW | 11.0 kW |
