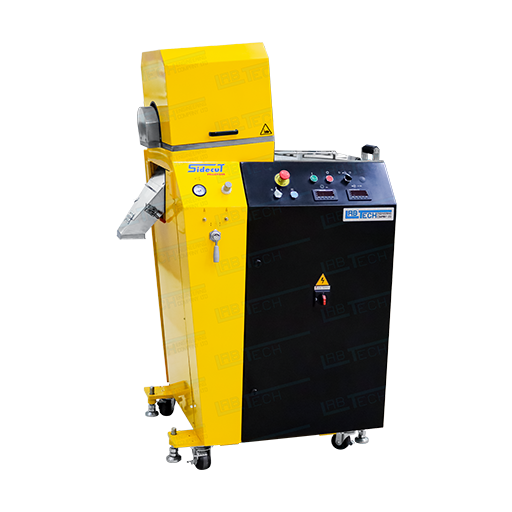

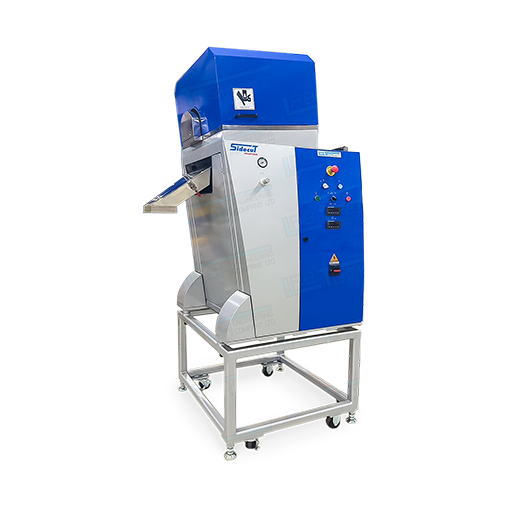

The Side-Cut Pelletizer is built with a unique concept of strand pelletizing of thermoplastics, from the softest to the most rigid engineering resins. The pelletizer uses a fan-shaped cutting wheel that cuts the strands sideways with a scissors action.
Side Cutter | LSC-108 | LSC-1512 | LSC-1516 | LSC-112 M | LSC-1520 M |
|---|---|---|---|---|---|
Pellet diameter range (mm) | 1 to 5 | 1 to 5 | 1 to 5 | 0.4 to 1.5 | 0.4 to 1.5 |
Pellet length rang (mm) | 0.25 to 30 | 0.25 to 47 | 0.25 to 47 | 0.15 to 20 | 0.15 to 20 |
Max output (kg/h) | 110 (Pellet Ø 3X3) | 370 (Pellet Ø 3X3) | 420 (Pellet Ø 3X3) | 50 (Pellet Ø 1.5X1.5) | 220 (Pellet Ø 1.5X1.5)
|
Knife rotor max (RPM) | 1800 | 2200 | 2640 | 2200 | 2000 |
Number of rotary knives | 8 | 12 | 16 | 12 | 20 |
Max feed speed (M/min) | 50 | 90 | 90 | 40 | 60 |
Knife rotor drive (kW) | 0.75 | 1.5 | 2.2 | 0.75 | 2.2 |
Feed rollers drive (kW) | 0.37 | 0.75 | 0.75 | 0.37 | 0.75 |
