Our completely redesigned High-Speed 3D Filament Extrusion Line is built with advanced components enabling a maximum line speed of 130 m/min for most resin types such as PLA, PA, TPE and even carbon fiber composite. It is capable of producing filament diameters of 1.75 and 2.85 mm (other diameters are available on request) compatible for all printer brands, and it is designed to run 24/7 giving optimum return of your investment.

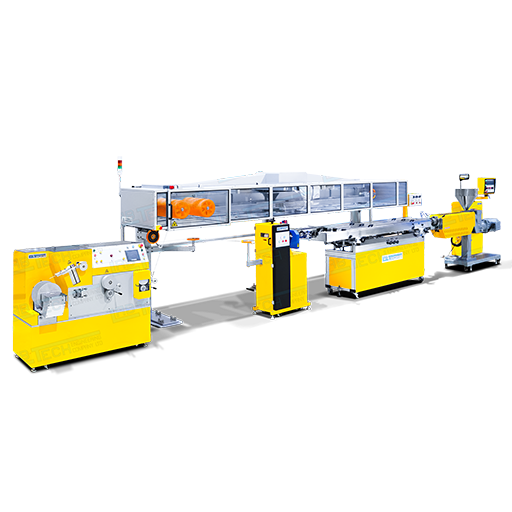

With a total length of 9.8 meters, the line consists of a 40 mm Single-Screw Extruder which can be optionally equipped with a drying hopper and autoload system, as well as a Triple Chamber Water Cooling and Calibration Bath with three independent water chambers where the filament is led in zigzag from calibration, heating and cooling. It also features a new Horizontal Filament Accumulator ensuring that the filament is available all the time for a continuous and uninterrupted operation, and it is synchronized to the Single-Station Filament Winder equipped with a new lay-on system that perfectly lays the filament side by side at the spool.
