5 Layers Co-Ex Compact Film Blowing Line

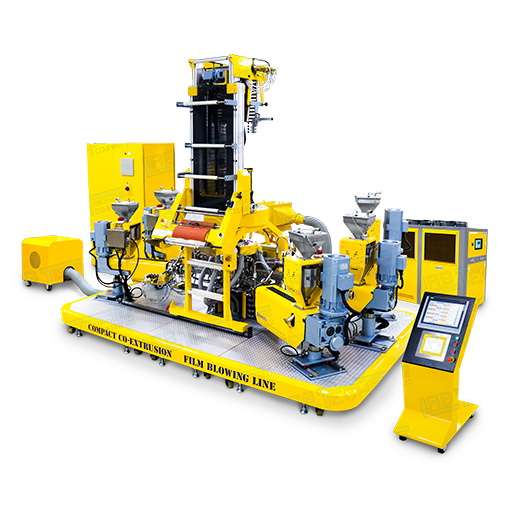

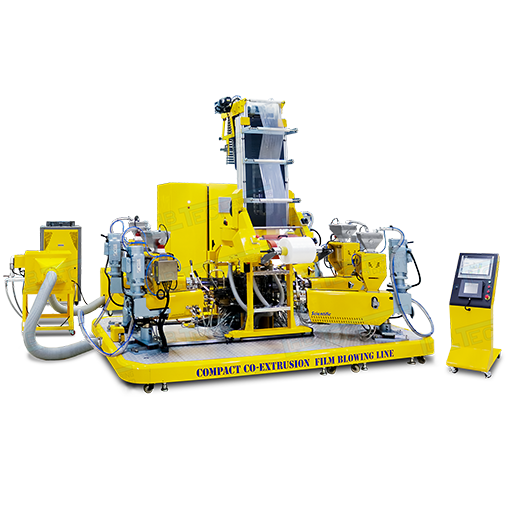

Our new Compact LCF-400 CO-EX film blowing line is a viable low-cost alternative to our regular co-extrusion film blowing lines. The line has 5 modular “lowboy” type extruders connected to a five-layer pancake type film blowing die. The standard line is equipped with a stabilizer cage with Teflon rolls, polished wood collapsing frame, hard-chromed and rubber haul-off rolls, rubber pull rolls, and surface winder all mounted over the die assembly on a 360-degree, oscillating tower frame.

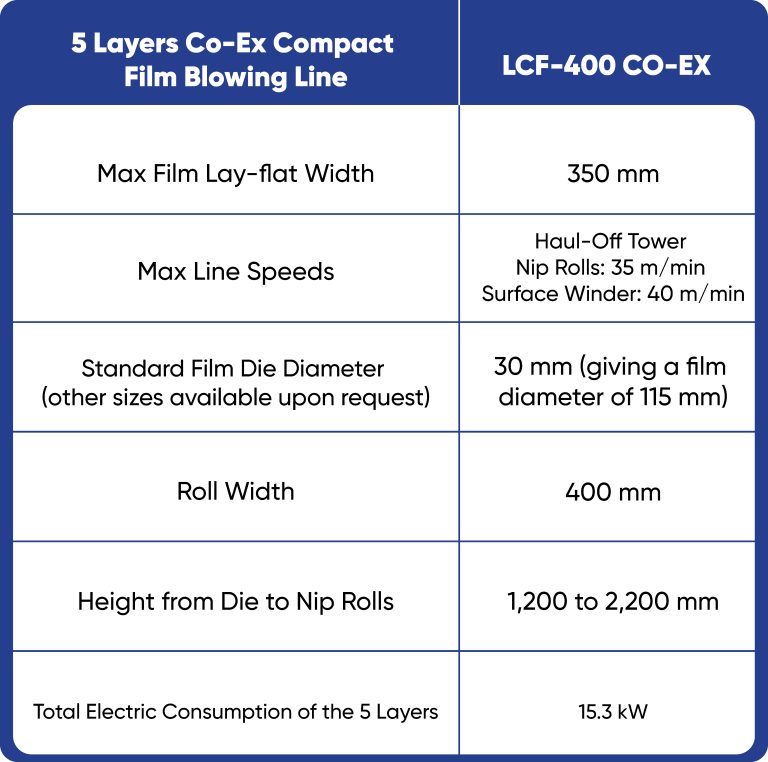

5 Layers Co-Ex Compact Film Blowing Line
LCF-400 CO-EX
Max Film Lay-flat Width
350 mm
Max Line Speeds
Haul-Off Tower Nip Rolls: 35 m/min Surface Winder: 40 m/min
Standard Film Die Diameter (other sizes available upon request)
30 mm (giving a film diameter of 115 mm)
Roll Width
400 mm
Height from Die to Nip Rolls
1,200 to 2,200 mm
Total Electric Consumption of the 5 Layers
15.3 kW
